Hospital bed maintenance lift

Safely lift up to 600 kg beds for servicing and maintenance.

Hospital bed maintenance lift

The LT600HBML Hospital bed maintenance lift is designed to fit all hospital beds including bariatric beds weighing up to 600 kg.

Powered by an electric hydraulic lift, its remote control enables easy access for hospital maintenance or engineering staff to carry out servicing or maintenance repairs safely.

To prevent hospital beds from sliding off, the hospital bed maintenance lift is supplied with a 20 mm safety lip around the sides, as well as a Width Extension Kit for an additional 600 mm width.


  • Expandable table configuration.

  • Side table extensions.

  • Add-on front deck to accommodate custom length beds.

  • Electric hydraulic lift remote control.

  • Hydraulic direct-drive cylinders, designed and made on ANSI standard, utilising oil seal in cylinder.

  • Self-lubricating UHMW polyethylene sliders and bronze bush.

  • Width Extension Kit for an additional 300 mm on each side.

Safety features

  • Anti-slip/non-skid chequer plate platform.

  • Automatic safety release system.

  • Safety lip (20 mm) on three sides of platform (excluding ramp end) to prevent hospital beds from falling off.


The Hospital Bed Maintenance lift is supplied partly flat-packed, some assembly required. Upon receipt of the unit, you will need to attach the hydraulic hoses and fill the reservoir with hydraulic oil (supplied with the unit) and bolt together the platform width extension. It is advisable that the unit is fastened to the floor before use. Full instructions are supplied with the unit.


Order code:


Lifting capacity:

600 kg

Lifting time:

23 seconds

Lowered height:

155 mm

Raised height:

1090 mm

Overall length:

2755 mm

Ramp length:

400 mm

Overall width:

1350 mm (including the 600 mm Width Extension Kit)

Deck type:

Chequer plate


1.5 HP


240V mains power operated.

Shipping dimensions (L/W/H):

2300/750/750 mm (350 kg).

Unit weight:

290 kg

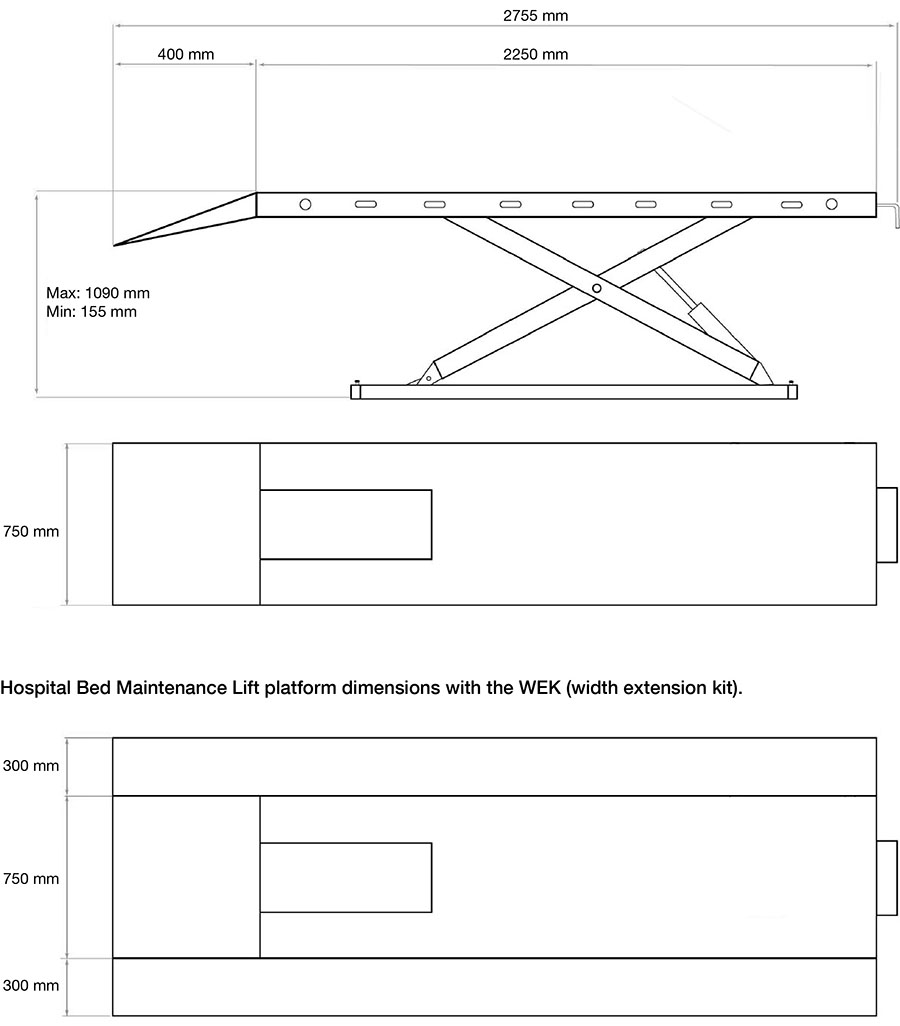

Hospital bed maintenance lift dimensions

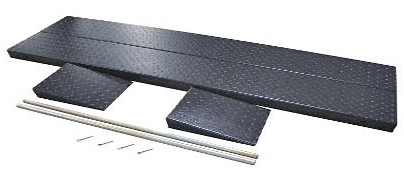

Width Extension Kit

This kit adds 600 mm to the width of the platform.

Hospital bed maintenance lift

An example of Hospital Bed Maintenance Lift with the Width Extension Kit, adding 300 mm to each side.

Hospital bed maintenance lift with the width extension kit
